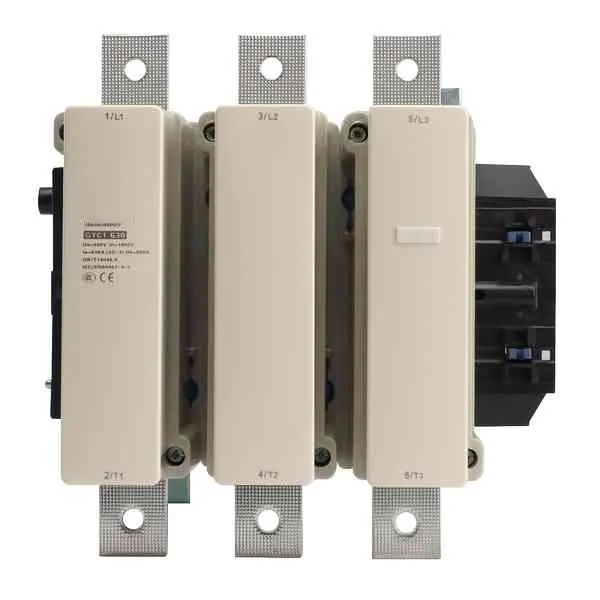

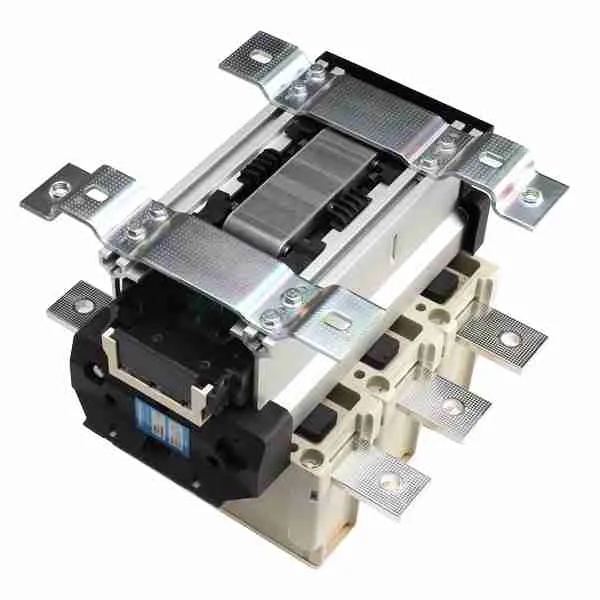

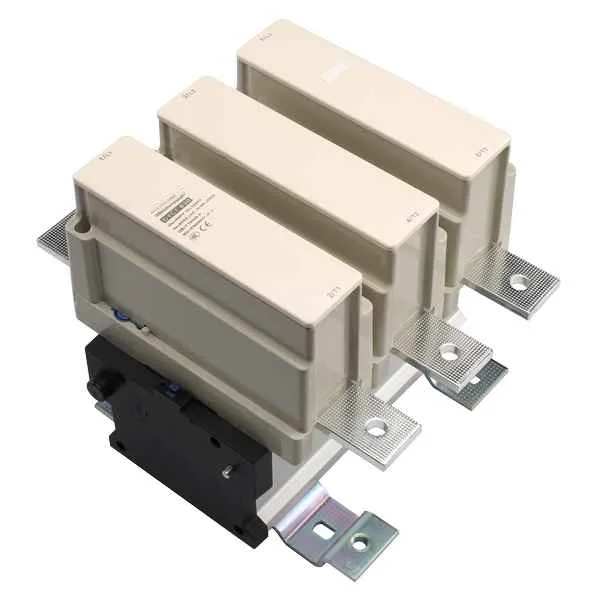

PKC1 630 High Ampere AC Contactor
In a circuit of AC 50\60Hz, voltage up to 1000V, current up to 600A, controlling motors of different types.
Control resistance, inductive, capacitive loads: heating, lighting, power compensation, and transformer
Control distribution circuit, industrial distribution, green energy distribution
For harsh environments and frequent operations,
quick operating coils are recommended
Control resistance, inductive, capacitive loads: heating, lighting, power compensation, and transformer
Control distribution circuit, industrial distribution, green energy distribution
For harsh environments and frequent operations,
quick operating coils are recommended
Standard products, for categoriesof AC3, AC1. Widely used for controlof AC motors.
Overview
Rated operationalcurrent A:115、150、185、225、265、330、400、500、630、780、800
Rated operationalcurrent A
AC3:115-800
AC1:200-1600
Conventional thermal current thA: 200-1600
Maximum rated operationalvoltage V :1000
Number of poles:2-4
Maximumoperatingpower AC1KW
Selection guide
