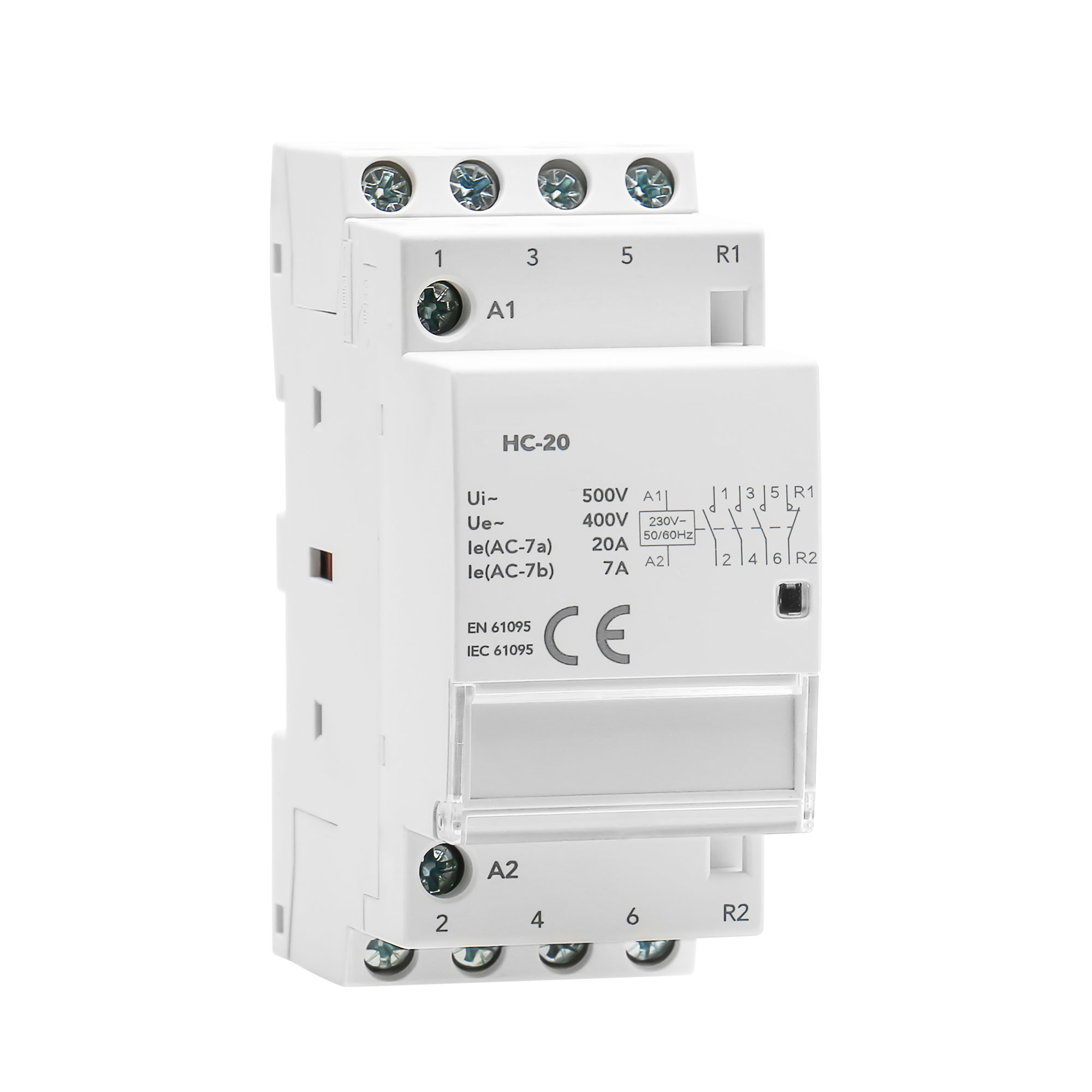

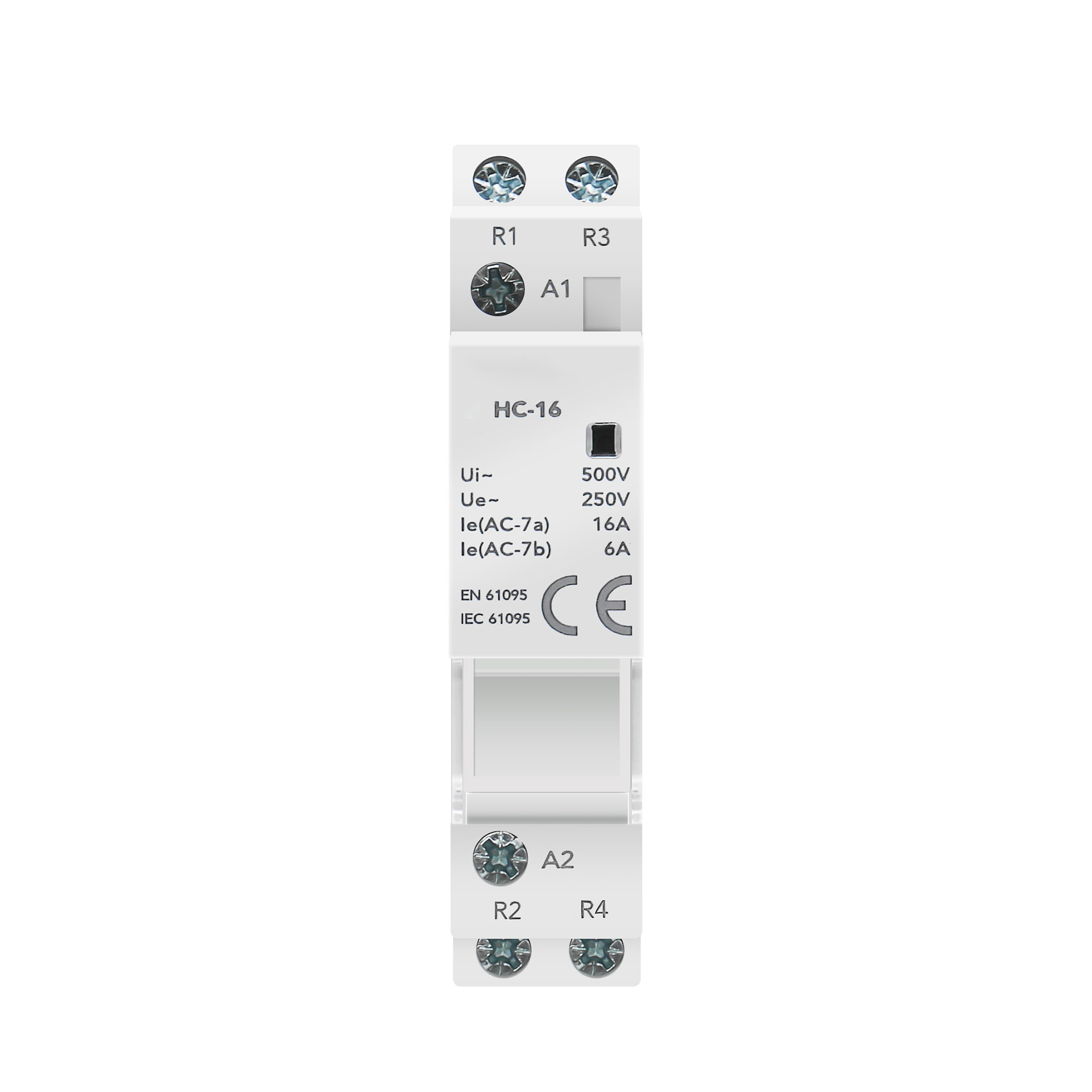

HC-16/20 1P 2P 3P 4P Household Modular AC Contactor

The  HC series Household  Modular Contactors used for commutation of single-phase and three-phase low power electrical consumers. They can be combined with auxiliary control, protection and indication functions; can be used to remote control applications in alternative networks: Lighting, heating ventilation roller blinds, sanitary hot water; mechanical ventilation systems; load-shedding of non-priority circuits, etc.
Get Quote Now



Functions

• switching on of consumers
• making of control systems
• remarkable with high reliability of current characteristics
• reliable switching on or separation of power contacts







Technical Prameters



Type

Rated current(In)

Control voltage (V AV) (50/60Hz)

Contact

Multiple Of The Width Of The Module (Multiple of 9 mm)

AC-7a

AC-7b

1P

16A

6A

24V/48V/110V/230V

1NO
1NC

2

20A

7A

25A

9A

2P

16A

6A

24V/48V/110V/230V

2NO
2NC
1NO1NC

2

20A

7A

25A

9A

32A

12A

4

40A

15A

63A

20A

3P

16A

6A

24V/48V/110V/230V

3NO
3NC

4

20A

7A

25A

9A

32A

12A

6

40A

15A

63A

20A

4P

16A

6A

24V/48V/110V/230V

4NO
4NC
2NO2NC
3NO1NC

4

20A

7A

25A

9A

32A

12A

6

40A

15A

63A

20A









Mounting

• mounting to 35mm DIN-rail
• mounting : vertical gradient – maximum± 5°
• plastic: nonflammable (self-extinguishing material)
• ambient temperature: -10°C to + 65°C
• degree of protection(IEC 60529) : IP20
• tropicalization(IEC 60068-1) : treatment 2 (relative humidity 95% at 55°C)
