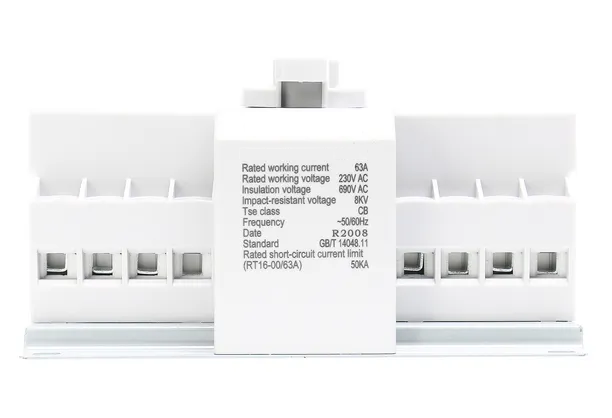

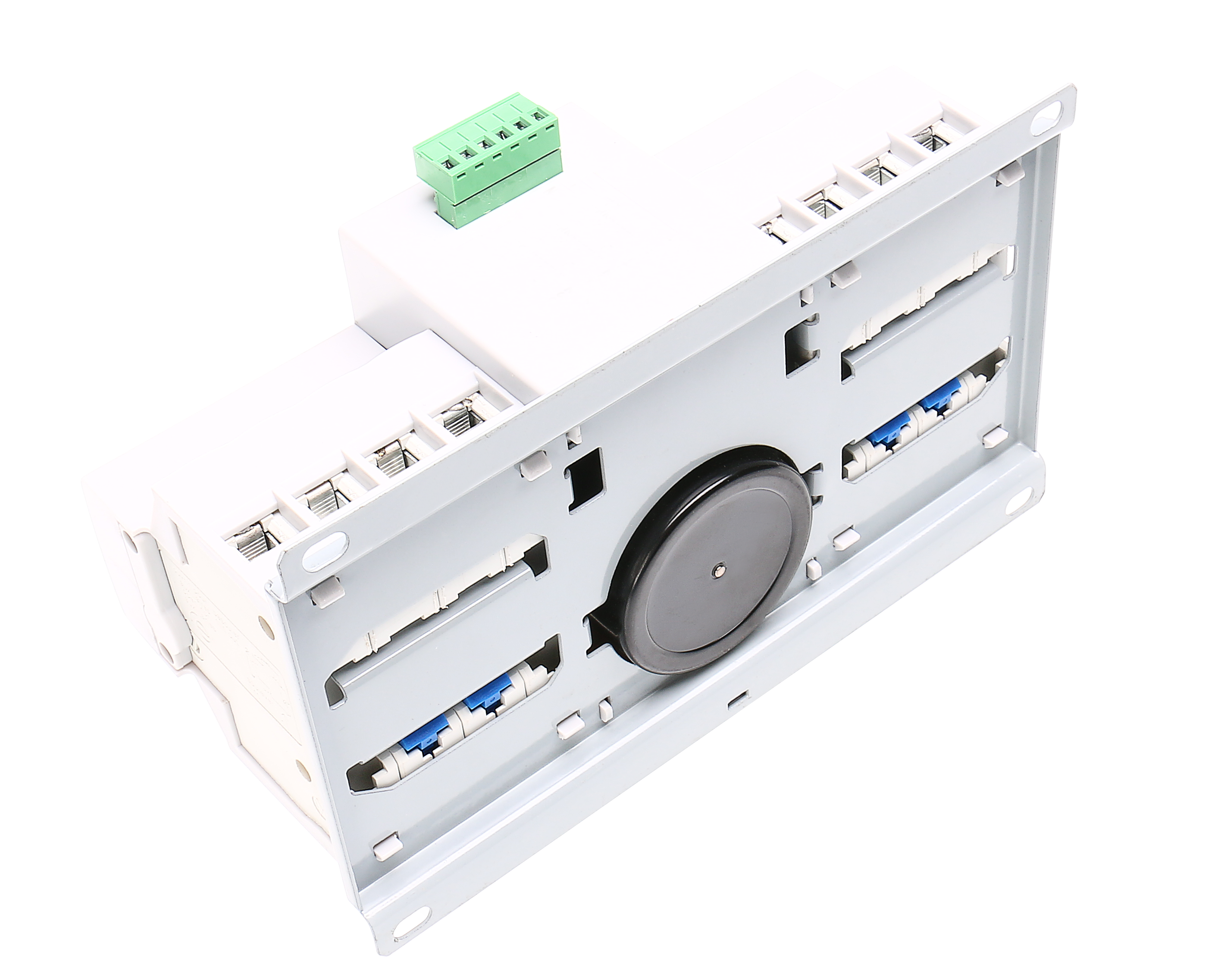

Mini-63A 2P Automatic Transfer Switch（ATS）
Mini-63A 2P Automatic Transfer Switch（ATS）
Mini-63A Automatic Transfer Switch（ATS）is suitable for AC 50 Hz or 60 Hz, rated voltage 400V, rated working current 63A and below. It can be used for selective conversion between two dual power sources.Mini-63A Automatic Transfer Switch（ATS）has short circuit, overload, and undervoltage protection functions, as well as fire protection, double and output closing signal functions.
Introduction
Mini-63A Automatic Transfer Switch（ATS） has a reasonable structure, small size, and beautiful appearance. Moreover, it has a protective cover with a more safe and more reliable power supply. This switch has complete protection functions, with short circuit, overload, phase loss, and under-voltage protection. With EPS firepower interface, DC12-24 V can be reliably long-distance double split. There is no dry movement, energy saving, easy installation, simple operation, and reliable and stable performance.
Technical Parameters
| Rated operating current le(A) |
6、10、16、20、25、32、40 | 50、63 |
| Grade of electrical equipment | Grade CB | |
| Utilization category | AC~33iB | |
| Tripping current | 5-10In (type C)，10~15In (type D) | |
| Rated operating voltage Ue | 220V(2-pole)，380V(3-pole，4 poles) | |
| Rated frequency | 60Hz | |
| Rated short-circuit making capacity lcm(peak) | 9.18kA | 6.615kA |
| Rated short-circuit breaking capacity Icn (effective value) | 10kA | 4.5kA |
