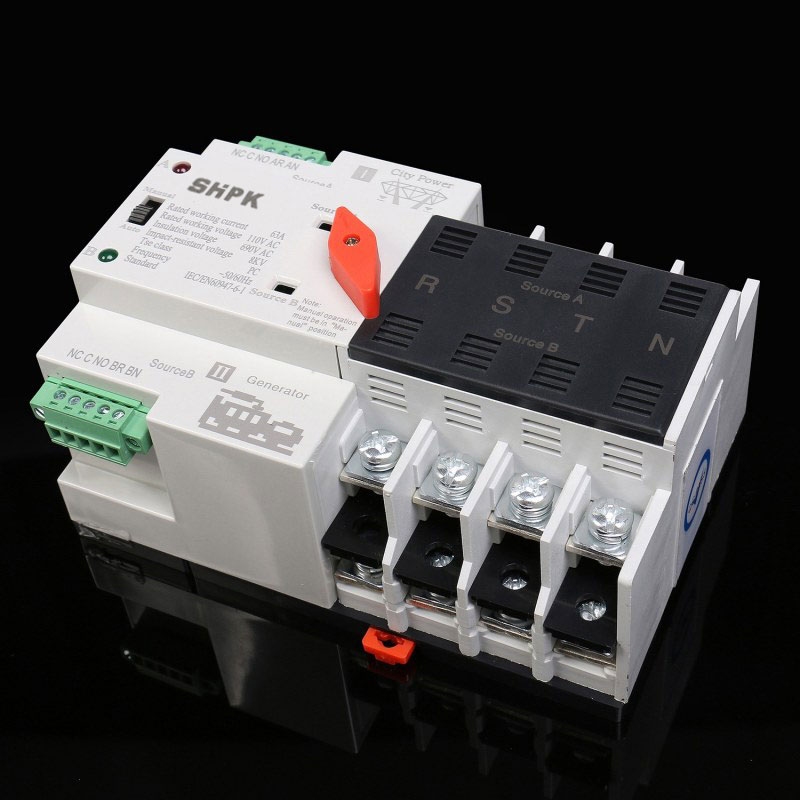

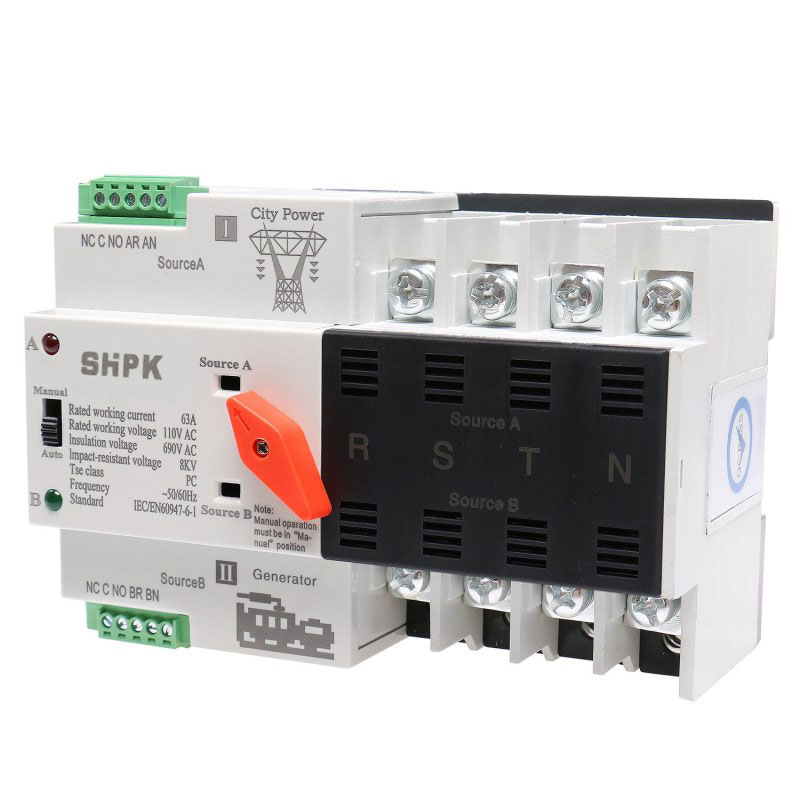

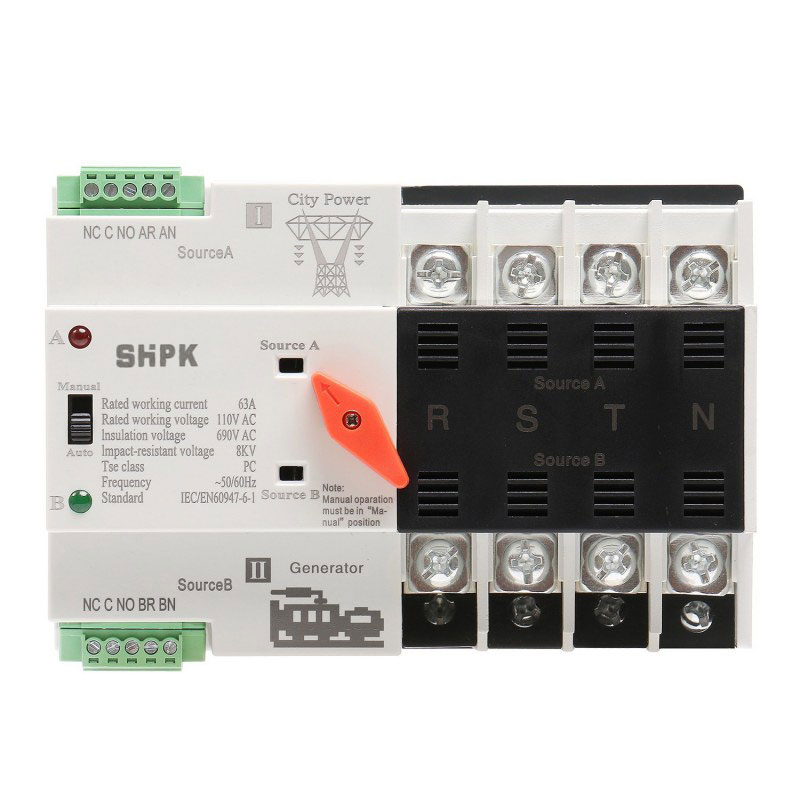

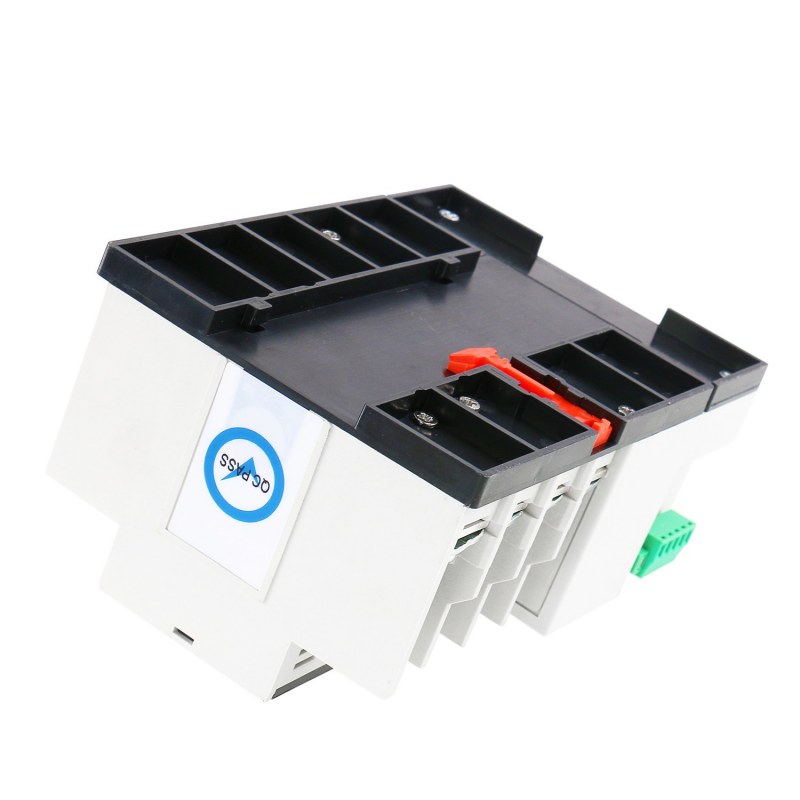

PKQ3R Regular Automatic Transfer Switch（ATS）

PKQ3R Series of automatic transfer switches(ATS) are suitable for emergency power system 400V,100A with AC rated current of 50 or 60Hz, compact structure, reliable conversion, easy installation and maintenance long life. It is widely used in various occasions where continuous power failure is not allowed. It can be operated electrically or manually by ATS, and the controller.
Get Quote Now

Overview





Series dual power automatic transfer switches(ATS) are newly developed miniature household power transfer switches. This switch is mainly used to test whether the normal or standby power supply is normal. When the normal power supply is abnormal, the backup power supply will work immediately to ensure the continuity, reliability and safety of the power supply. This product is specially designed for home track TV installation and is specially used for Pz30 distribution box.

Complies with requirements of Low –voltage Switch Gear and Control Gear specified by IEC 6 0947-6-1and IEC 60947-3: functional equipment and transfer switch equipment.





Technical Parameters





Rated current le A 16 20 25 32 40 50 63 100
Temperature range -5℃~+40℃
average temperature not more than 35℃ in 24 hours
Pole 2P 3P 4P
Rated conditional
short-circuit current lq		 50kA
Rated impulse
withstand voltage		 8kV
Contact transfer time <50ms
Operating transfer time <50ms
Return transfer time <50ms
Off-time <50ms
Use category AC-33iB
Auxiliary circuit AC220V/AC110V 50/60Hz
Rated voltage Ue AC400V
Insulation voltage Ui AC690V
Grade Grade PC: able to male and withstand,
not to break short-circuit current
Weight(kg) 0.62 0.72 0.81
Life Electrial:2000times;Mechanical:5000times
SCPD(fuse) RT16-00-63A
Control circuit Rated control voltage Us: AC220V,
50Hz Correct working condition85%Us~110%Us

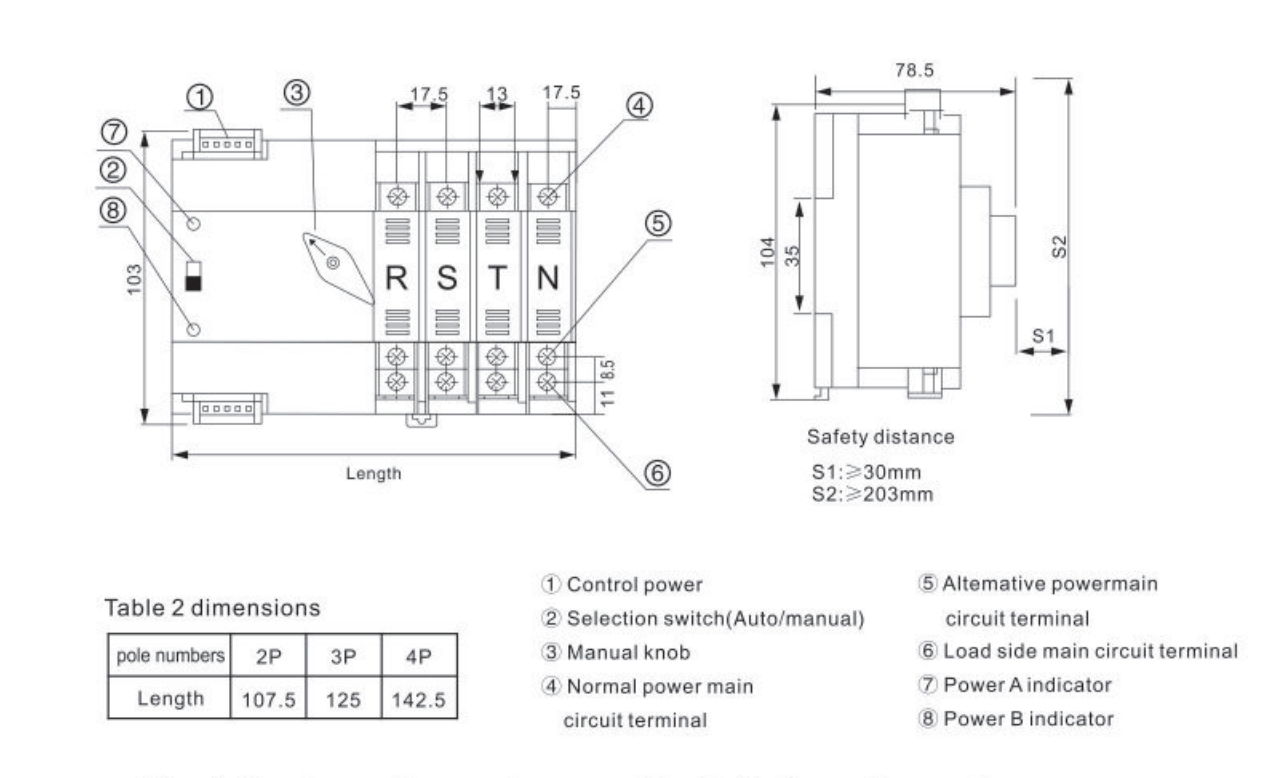

Installation Dimensions
